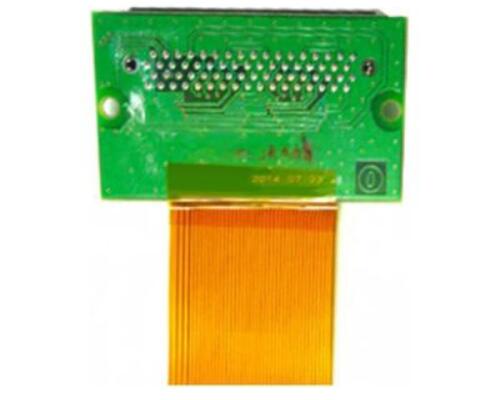

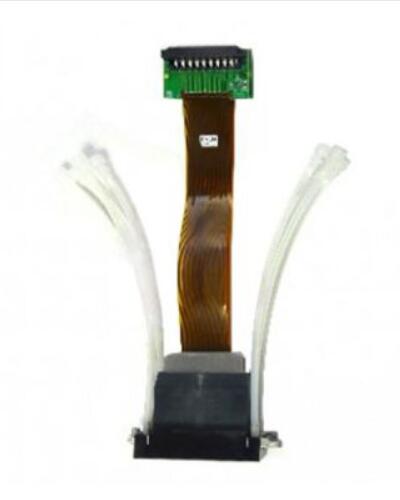

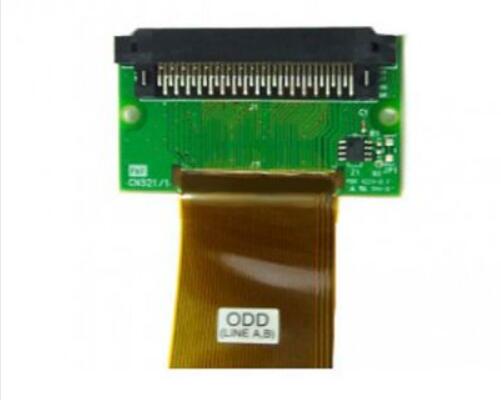

Mimaki TS500-1800 Gen5 Printhead Assy Type-D - M014140
This printhead is suitable for Mimaki TS500-1800 & TX500-1800 series printers.
Printer Compatibility: Mimaki TS500-1800 / TX500-1800B / TX500-1800DS
Part No.: M014140
Remarks: Original
Specifications:
|
Model
|
DIGI-PRH-MIM-006
|
| Head materials | SST, Nickel alloy, Epoxy Adhesive |
| Number of nozzles | Four 320 nozzles |
| Nozzle spacing | 0.1693 mm |
| Nozzle density | up to 600 npi |
| Nozzle plate surface | Coated SST |
| Piezo type | D33 Stacked PZT |
| Native drop volume | 7 pl |
| Drop volume range | 7 - 35 pl |
| Drop velocity | 7 m/s |
| Jetting frequency | Up to 60 kHZ |
| Temperature control | Integrated Heater and Thermistor |
| Operator temperature range | Up to 80° C |
| Life | 100 billion actuations per nozzle |
| Dimensions | 89 x 25 x 69 mm (not include cables) |
