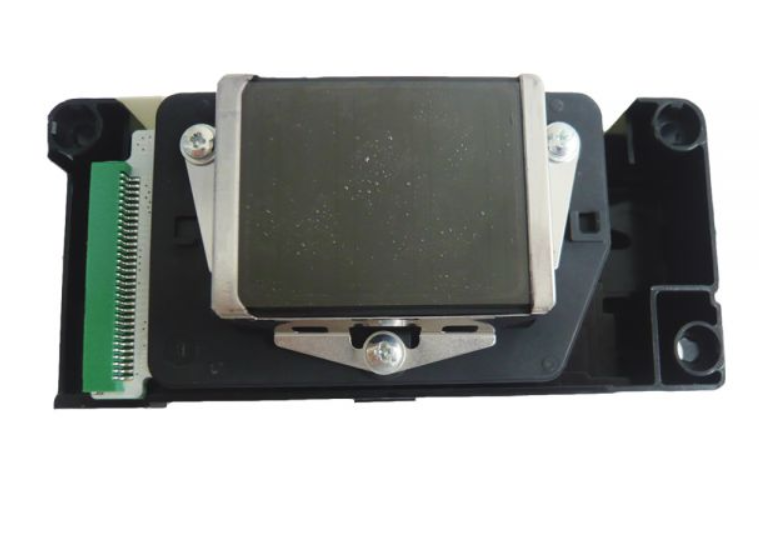

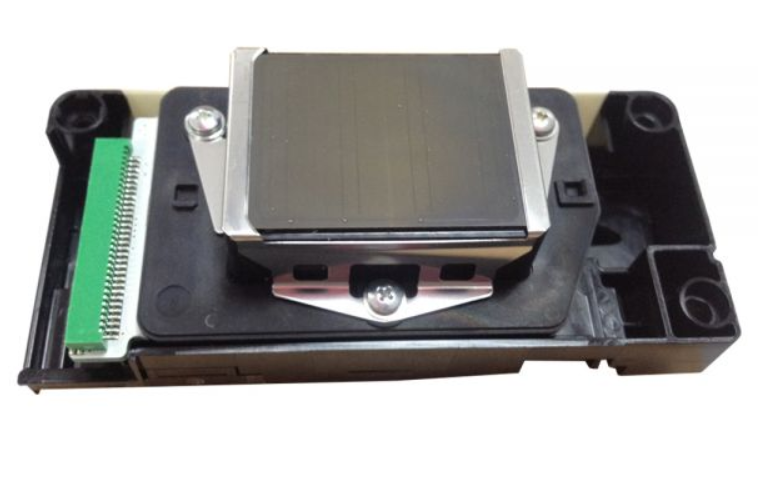

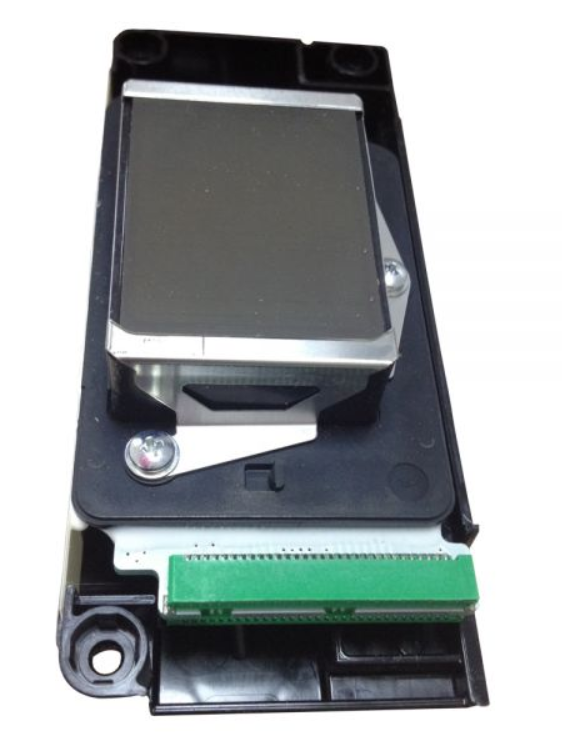

This original Mimaki JV33/JV5 printhead is suitable for the Mimaki solvent printer series. The Mimaki JV33/JV5 printhead has a native resolution of 1440dpi, 8 nozzle lines (corresponding with 8 independent ink channels) and 180 nozzles per line.

The Mimaki JV33/JV5 printhead is either used in 4-colours or 6-colours and has a minimum, variable droplet size of 1.5 pico litre (max. droplet size is 21 pico litre). The typical firing frequency for this print head is 8 kHz.

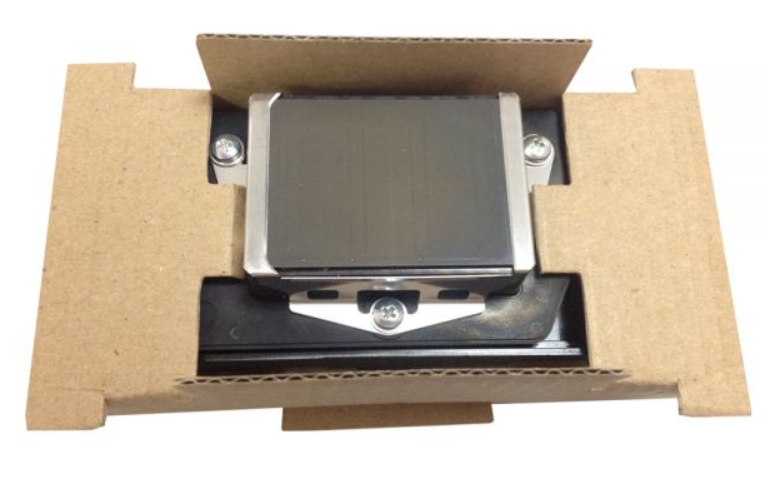

It is a new generation printhead that allows fast speed, high resolution printing with eco-solvent and mild solvent inks. The Mimaki JV33/JV5 original printhead is delivered in a sealed Mimaki package, with the Head ID, but without the Head Memory Board (you can safely re-use the Head Memory Board of the printhead you are replacing). Mimaki part number for this printhead is M007947. The original printhead with the memory board is also available online as part number PPHMIJV5002.

This printhead carries a one year manufacturer warranty.

Product Specifications

Technology: Micro-Piezo

Native resolution: 1440 dpi

Min. Droplet Size: 1.5 pico litre

Max. Droplet Size: 21 pico litre

Tot. Amount of Nozzles: 1440 (8 lines x 180 nozzles)

Firing Frequency: 8 kHz

Ink Compatibility: eco-solvent and mild solvent

It is highly recommended to replace the head cables together with a new printhead.

Aleph

TXB 160S

Mimaki

CJV30-100

CJV30-100BS

CJV30-130

CJV30-130BS

CJV30-160

CJV30-160BS

CJV30-60

CJV30-60BS

JV33-130

JV33-130BS

JV33-160

JV33-160BS

JV33-260

JV33-260BS

JV5-130S

JV5-160S

JV5-260S

JV5-320DS

JV5-320S

TPC-1000

TS3-1600

TS5-1600AMF
