Description

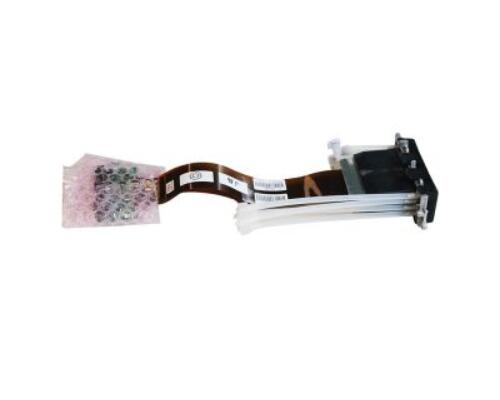

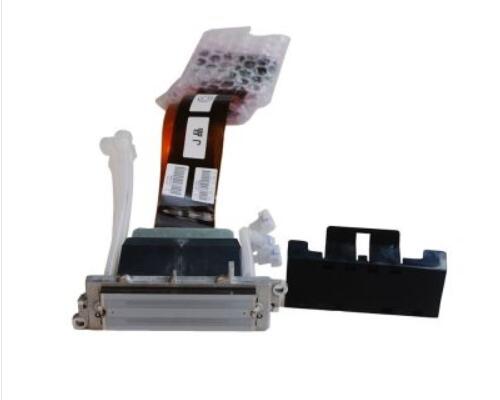

Mimaki SWJ-320 Printhead GEN5 Assy Packaging - M012639 - EXCLUSIVE
To be used with: Mimaki SWJ-320 Printers.
Remarks: Original
Part No.: M012639
Specifications:
|
Model
|
DIGI-PRH-MIM-005
|
| Dimensions | 89 x 25 x 69 mm (excluding cables) |
| Head materials | SST, Nickel alloy and Epoxy Adhesive |
| Nozzle plate surface | Coated SST |
| Number of nozzles | 4 x 320 nozzles |
| Nozzle spacing | 0.1693 mm |
| Nozzle density | up to 600 npi |
| Piezo yype | D33 Stacked PZT |
| Temperature control | Integrated Heater and Thermistor |
| Operator temperature range | Up to 80° C |
| Native drop volume | 7 pl |
| Drop volume range | 7 - 35 pl |
| Drop velocity | 7 m/s |
| Jetting frequency | Up to 60 kHZ |
| Life | 100 billion actuations per nozzle |
