Description

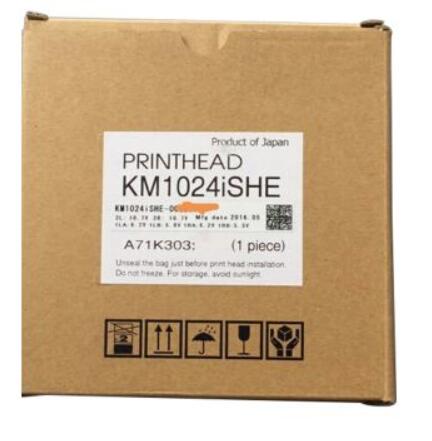

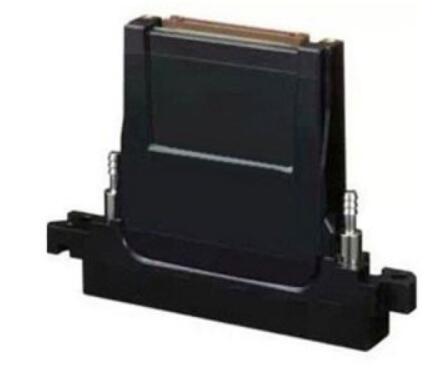

Konica KM1024i SHE 6PL Print Head
Printer Compatibility:
Agfa: Anapurna 100, Anapurna H2500i LED, Anapurna M2050i, Anapurna M2500i, Anapurna M3200i
Allwin: S320UV, S500UV, UVT 2030, UVT 2512, UVT+ 2030, UVT+ 2512
Docan: H1000
Flora: HJ 5000UV
Human Digital Technology: M-JET
IIJ: ColourPrint-72
JHF Vista: R3300, R6000, V300UV, V500UV
Optimum Digital: KR Hybrid UV
Skyjet: FT2512i, FT3020i
Remarks: Original
Environmentally-considerate Approved Green Product
The Konica Minolta KM1024i SHE printhead incorporates only approximately one-third of the petroleum-derived materials and toxic chemicals used in the current KM1024 Series. In addition, the nozzle unit surface area is the same as that of the KM1024 Series.
Specifications:
|
Model
|
PRH-KON-019
|
| Technology | Piezo Drop On-Demand |
| Tot. Amount of Nozzles | 1024 (256 nozzles per line) |
| Native Resolution | 360 dpi |
| Cal. Droplet Size | 6 pl |
| Max. Drops in Greyscale | 8 drops |
| Print Width | 72 mm |
| Typical Firing Frequency | 50 Khz |
| Max Firing Frequency | 60 kHz |
| Ink Compatibility | UV Inks |
| Heater | integrated |
| Dimensions | W131mm x D18mm x H94mm |
| Weight | Approx. 150g |
