Description

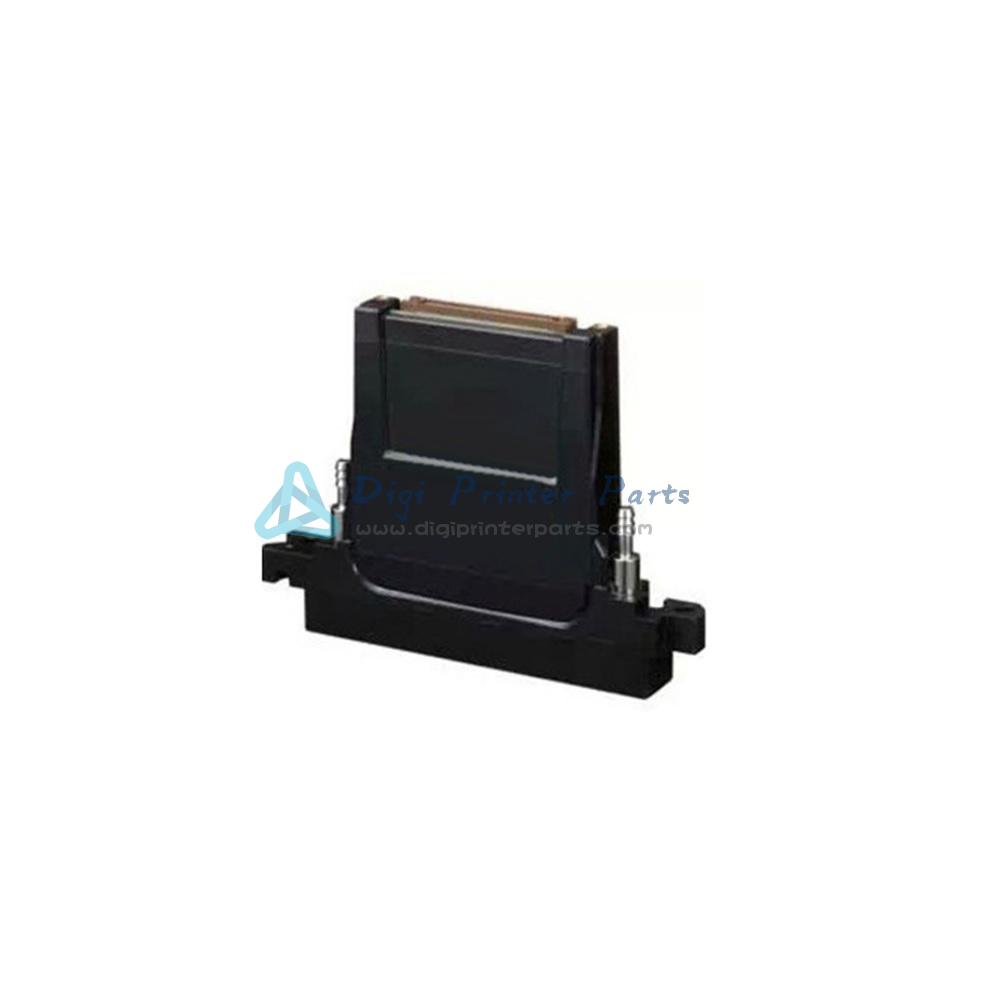

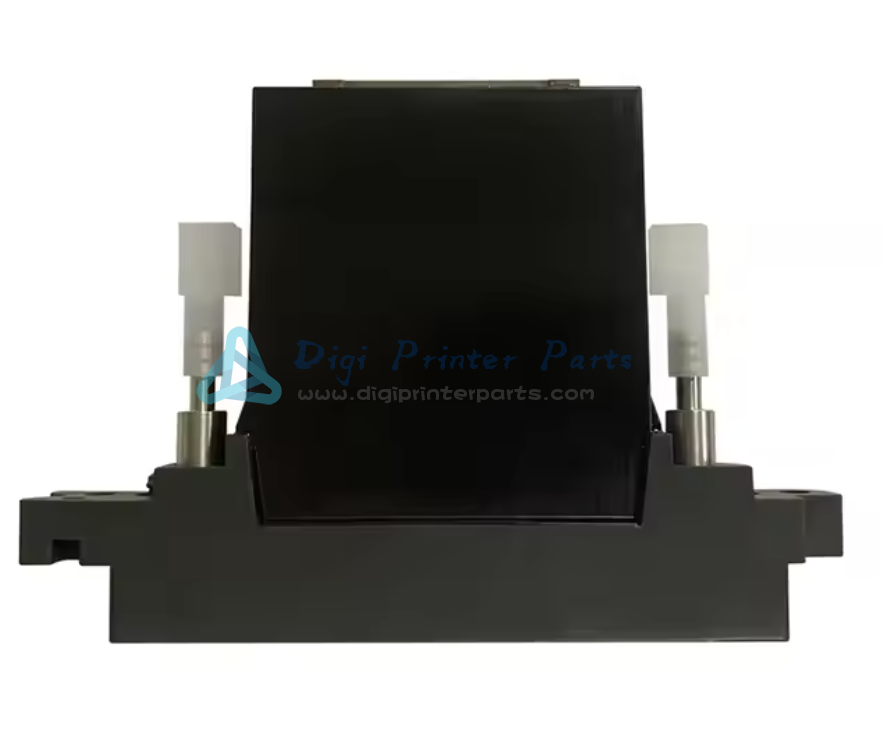

The Konica Minolta KM HS2000 printhead is a piezo on-demand printhead featuring an all-nozzle Independent drive system with a multi-line structure. It can be used as a replacement of the KM1024i SHE 6PL printheads.
Description:
The Konica Minolta KM HS2000 printhead is a piezo on-demand printhead featuring an all-nozzle Independent drive system with a multi-line structure. It can be used as a replacement of the KM1024i SHE 6PL printheads.
Printer Compatibility:
Agfa Anapurna (100, H2500i LED, M2050i, M2500i, M3200i )
Allwin (S320UV, S500UV, UVT 2030, UVT 2512, UVT+ 2030, UVT+ 2512)
Docan H1000
Flora HJ 5000UV
Human Digital Technology M-JET
IIJ ColourPrint-72
JHF Vista (R3300, R6000, V300UV, V500UV)
Optimum Digital KR Hybrid UV
Skyjet (FT2512i, FT3020i)
Taimes T50UV
Yicong YD2512-KD
Flora (PP 2512UV, XTRA 330)
Specifications:
• Technology: Piezo Drop On-Demand
• Native resolution: 360npi (90npi x 4lines)
• Calibrated drop size: 6 pl
• Grayscale maximum drop count: 8 drops
• Total nozzles: 1024 (256 nozzles per row)
• Print width: 72 mm
• Typical jetting frequency: 50 Khz
• Maximum jetting frequency: 60 kHz
• Ink compatibility: UV inks
• Heater: Integrated
• Dimensions: W131 mm x D18 mm x H94 mm
• Weight: 150g
