Description

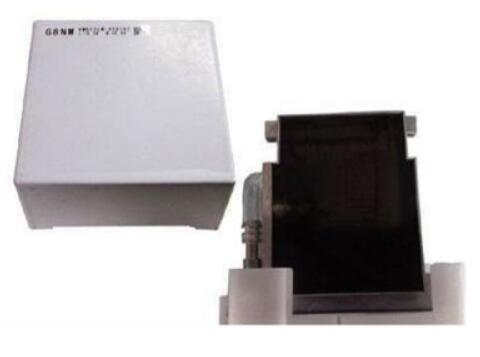

Konica KM512 LNX 35PL Printhead
The Konica Minolta KM512 LNX-35 Print Head is a robust print head , shear mode, piezo on-demand print head that is usable in binary mode only. This Konica Minolta print head has 512 nozzles with a droplet size of 35 picolitre and a native resolution of 360 dpi. It is compatible with oil based, solvent and UV inks.
To be used with:
Aestrik InWear S3304K5 / InWear S3308K5, Allwin C8 / C12 / H8, Anhui Liyu PT-KL / Apollo PTP1804-KL / Apollo PTP1806-KL / Apollo PTP1808-KL / Apollo PTP3204-KL / Apollo PTP3206-KL / Apollo PTP3208-KL / Apollo PTP18/3202-KC / Apollo PTP18/3204-KC / Apollo PTP18/3206-KC / Apollo PZ3204-KX / Apollo PZ3206-KX / Apollo PZ3208-KX, Maxima PZ3204-KX / Maxima PZ3206-KX / Maxima PZ 3208-KX, JHF Vista T903316LNX / T903312LNX / V12 / Vista3306 / S5004F / S5006FS, Myjet WB320 / LB320 / LE320, Rodin K4320-A / K4320-B, Skynet PC-series / HS-series
Remarks: Original
Specification:
|
Model
|
DIGI-PRH-KON-011
|
|
Technology
|
On-Demand Piezo Electri
|
|
Native Resolution
|
360 dpi
|
|
Cal. Droplet Size
|
35 pico litre
|
|
Tot. Amount of Nozzles
|
512 (256 nozzles per line)
|
|
Nozzle Spacing
|
70.5 microns
|
|
Print Width
|
36.1 mm
|
|
Firing Frequency
|
10 kHz
|
|
Ink Compatibility
|
Solvent
|
|
Heater
|
Not integrated
|
