Description

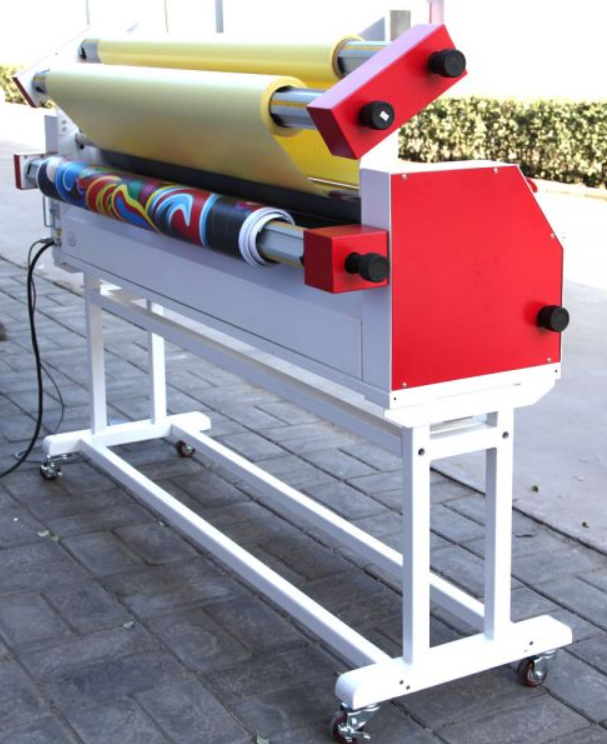

63" Full - auto Wide Format Roll Heat Assisted cold laminator with Stand
Description:
This 63" Full - auto Wide Format Roll Heat Assisted Cold laminator with Stand can be widely used for pre - masking vinyl graphic, mount prints on substrate, over laminating inkjet prints and so on. The cold laminator is used to after printing. Available for photographic, Ad. Shop and copy shop to do lamination work, adding a protective layer on books cover, photographic, color pages, documents, charts, drawings, indoor advertising products, etc.
Full - auto cold laminator machine (Automatic take - up roll for both printed images and back paper by one person), with functions of single sided roll cold laminating and mounting by electric.
Economic full-auto cold laminator with low heating function, assembling stand, silicon roller, stable duration
This cold laminating machine is upgraded from FMJ-1600-II-MULT, adopts low temperature cold laminating, mainly used to solve the issue that cold laminated images are hazy.
Purchasing this heat assisted cold laminator, it is recommended to buy the cold laminating film together.
Single side lifting roller, easy to adjust the open height of roller (the laminating thickness). Support roll to roll operation, which saves labor.
Good color reducibility and light transmittance, free of bubbles and snowflake point!
You can laminate 50m (164 feet) without shifting.
This new model can be widely used for pre-masking vinyl graphic, mount prints on substrate, over laminating inkjet prints and so on.
Main Configuration
Maximum Laminating Width: 1600mm (63")
Maximum Laminating Thickness: 35mm (1.4")
Laminating Speed: 0 - 6m (236") / min
120mm (4.7") upper rubber roller
Auto - take - up system
Pressure and height adjust hand wheel
Infrared temperature control device
Multi - function footswitch
Maximum heating temperature: 60 degree
Features:
• Solid built, laser - cut steel structure.
• Free heavy duty floor stand with caster wheels.
• 3" core auto - grip rollers for easy laminating film setup.
• 4.7" bigger up and down rollers for best quality laminating control.
• This cold laminator has simple structure, reasonable, humane and low cost characteristics.
• Adopt aluminum alloy supporting roller, which is easy to assemble and disassemble and can be used in exchange. The collecting rollers are dynamical rollers and the supporting rollers are without dynamic. All of the rollers are equipped with damp devices and are eligible for speed adjustment.
• The laminating-supporting roller and stripping roller are equipped with forelocks associating with standard 3-inch paper rolls.
• Since this cold laminator was produced, it has been popular at the roller for supporting film, guiding roller and roller for collecting liner paper.
• This cold laminator is operated conveniently and high efficiently - It realizes continuous laminating and longer picture laminating. Realize automatically stripping film and collecting liner paper through the rotary force of the upper and lower roller.
• Applying application tapes, applying double side adhesives and vinyl.
| Specification Form | |
| Model | DIGIFMJ-1600-II-WARM |
| Maximum Laminating Width | 1600mm (63") |
| Maximum Laminating Thickness | 35mm (1.4") |
| Laminating Speed | 0 - 6m (236") / min |
| Forward / Reverse | Yes |
| Foot Pedal | Yes |
| Roller’s Diameter | 120mm (4.7") |
| Maximum heating temperature | 60 degree |
| Motor power | 60W |
| Auto rewind liner pickup | Yes |
| After Laminating Pickup | Yes |
| Emergency Stops | Yes |
| Safety Photocell | Yes |
| Media Core Size | 3" |
| Power Supply | AC 110V - 240V, 50Hz or 60Hz |
|
1N/PE 220V 12A 1N/PE 110V 23A |
|
| Front view of the machine | Back viewof the roll cold laminator |
New - style aluminum alloy supporting roller
Details
|
|
|
|
3" core auto - grip rollers for easy laminating film setup Adopt new-style aluminum alloy supporting shaft, which is easy to assemble and disassemble and can be used in exchange. The prints rewind shaft is linked with motor and the unwind shaft is not. All of the shafts are equipped with tension brake system and are eligible for speed adjustment. |
High quality pentanenitrile rubber roller, 120mm (4.7 inch diameter) Generally speaking, the lifespan of a roller is about 4-5 years or longer. The roller is the key component of a laminator and it directly affects the quality of lamination, so it is critical to give good care and maintenance to the roller. |
|
|
|
|
The laminator is equipped with photoelectric safety switch to avoid external objects from entering the rollers. |
Working table with ruler, this machine’s table is very even. The feed table is more stable, and the laminating effective is better. |
|
|
|
| Easy operation panel: Forward, Backward, Foot Pedal Control and various speed adjustments, Emergency Stop Button. |
Panel for covering the picture |
Function
DIGIFMJ-1600-II-WARM is full – auto low temperature cold laminator (Automatic take - up roll for both printed images and back paper by one person), roll to roll laminating. Maximum laminating thickness can be up to 60 degree, mainly used to solve the issue that cold laminated images are hazy.
FMJ-1600-II-MULT is full-auto cold laminator (Automatic take - up roll for both printed images and back paper by one person), which has no low temperature function.
Function and maximum laminating thickness
FMJ-1600-II-WARM is full – auto low temperature cold laminator (Automatic take - up roll for both printed images and back paper by one person), roll to roll laminating. And its maximum laminating thickness is 35mm (1.4")
FMJ-1600-II-PLUS is semi – auto cold laminator (Automatic take - up rolls of liner paper, without take – up roller for after lamination prints), and its maximum laminating thickness is 25mm (1")
Way of lifting roller, please look at above pictures
FMJ-1600-II-WARM is one side hand crank lift up, easy to adjust the open height of roller (the laminating thickness).
FMJ-1600-II-PLUS is double side’s knob lift up.
FMJ-1600-II-WARM is one side hand crank lift up, easy to adjust the open height of roller (the laminating thickness).
FMJ-1600-II-PLUS is double side’s knob lift up.
Material of shaft - for supporting film, for supporting picture, for collecting liner paper
FMJ-1600-II-WARM cold laminating machine adopts new-style aluminum alloy supporting shaft, which is easy to assemble / disassemble and can be used in exchange.
The common cold laminating machine adopts steel round bar, it fixed by both sides of slots, you should use the tools to twist the screw. The operation is so complex.
The common cold laminating machine adopts steel round bar, it fixed by both sides of slots, you should use the tools to twist the screw. The operation is so complex.
Appearance - Take reasonable money to buy the suitable machines
Our Machine: Appearance design of FMJ-1600-II-WARM cold laminating machine has novel, simple and reasonable structure, humane and low cost characteristics.
The other machine: The top right side machine’s appearance design is too thin, and it is easy to damage, and it has many questions if you buy.
Why buy this full - auto roll cold laminator?
Laminating is a low cost way to protect and preserve everything from ID cards to restaurant menus. But did you know lamination does more than just protect? And that it protects in ways you may not have considered.
Lamination Preserves & Protects:
Here are a few ways lamination protects your materials, with an example of each:
Protects from spills: Sales presentation materials
Protects from rain: Little League team roster
Protects from grease and chemicals: Maintenance check list
Protects from smudges & fingerprints: menus
Protects from abrasion: Instructional materials
Protects from the sun: outdoor directional signs
Protects from creases and wrinkles: sales promotion material
Lamination provides low - cost long - term protection without the need for climate control or other special protective measures.
Lamination Improves Appearance:
Lamination improves the appearance of your materials in a variety of ways. For example, lamination:
Deeper and brightens colors; Enhances contrast; Dirt, grease and smudges can be cleaned off; Gloss, matte or satin finishes are available; Lamination gives your materials a finished, professional look of quality. Materials that are laminated just look better!
Lamination Can Improve Sales / Save Money:
By giving your materials a higher quality, professional look, lamination can improve your business image and help bring in more sales leads. Lamination can also save you money in a variety of ways, such as:
Laminated materials can be reused over and over;
Expensive graphics are protected ;
Lamination stiffens signs and posters (additional backing is not needed);
Employees have proper identification helping to save time and reduce accidents;
You can make low-cost signs that resist weather;
Lamination provides a durable way to protect and enhance almost any type of printed material. It improves the quality of materials by enhancing color and contrast, and providing a glossy "wet" look.
Lead Time: After receiving customer's deposit, within 1 - 3 days.
Wooden Box: There are total one wooden box.
|
Machine Dimension |
1938mm x 615mm x 1374mm (76" x 24" x 54") |
|
Machine Weight |
484lb (220kg) |
|
Package |
Fumigation free package |
|
Packing Size |
2050mm x 630mm x 710mm (81" x 25" x 28") |
|
Gross Weight |
646lb (293kg) |
Packing List
|
No. |
Name |
Specification |
Quantity |
|
1 |
Whole machine |
1600 |
1 |
|
2 |
Users’ manual |
English |
1 |
|
3 |
Placket spanner |
12 x 14 |
1 |
| 4 |
Placket spanner |
14 x 17 |
1 |
| 5 |
Inside hexagon spanner |
4 | 1 |
| 6 |
Inside hexagon spanner |
3 | 1 |
| 7 |
Cross screwdriver |
5" |
1 |
| 8 |
Slotted screwdriver |
5" |
1 |
| 9 |
Foot switch |
Large - sized |
1 |
| 10 |
Hull-bar fastener |
|
5 |
| 11 |
Spring tablet |
|
5 |
| 12 |
Safety tube |
3A |
2 |
| 13 |
Cutter paper |
|
2 |
