Description

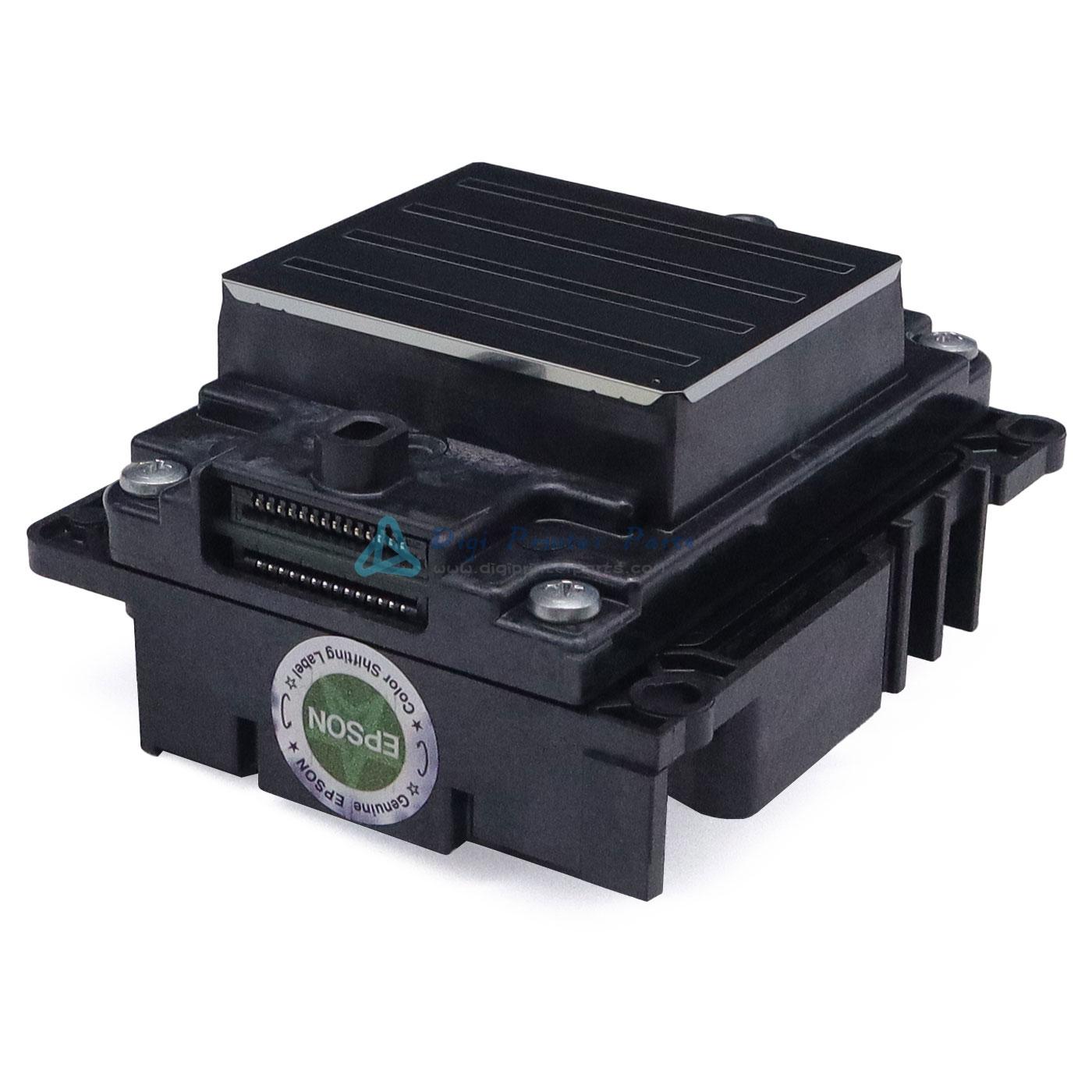

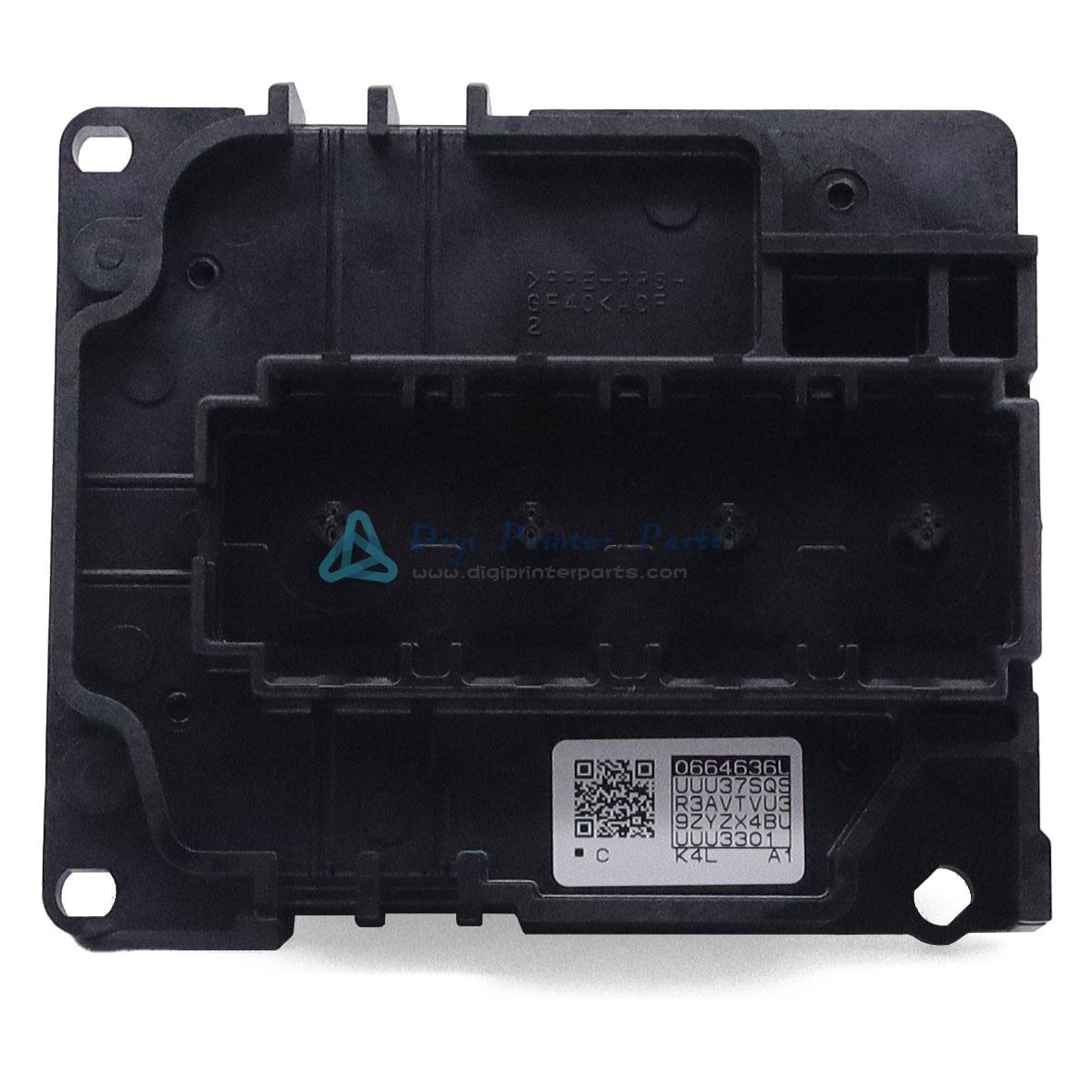

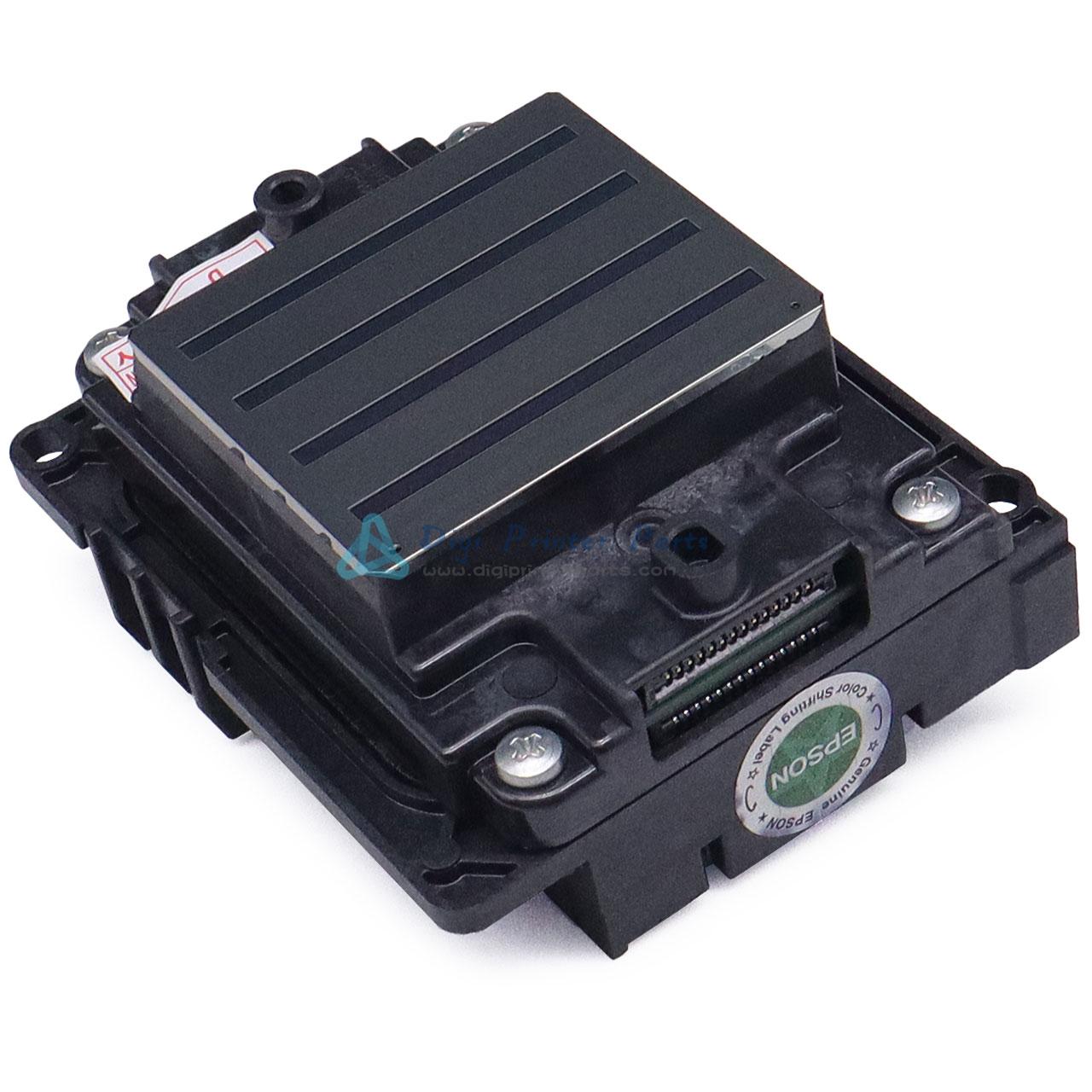

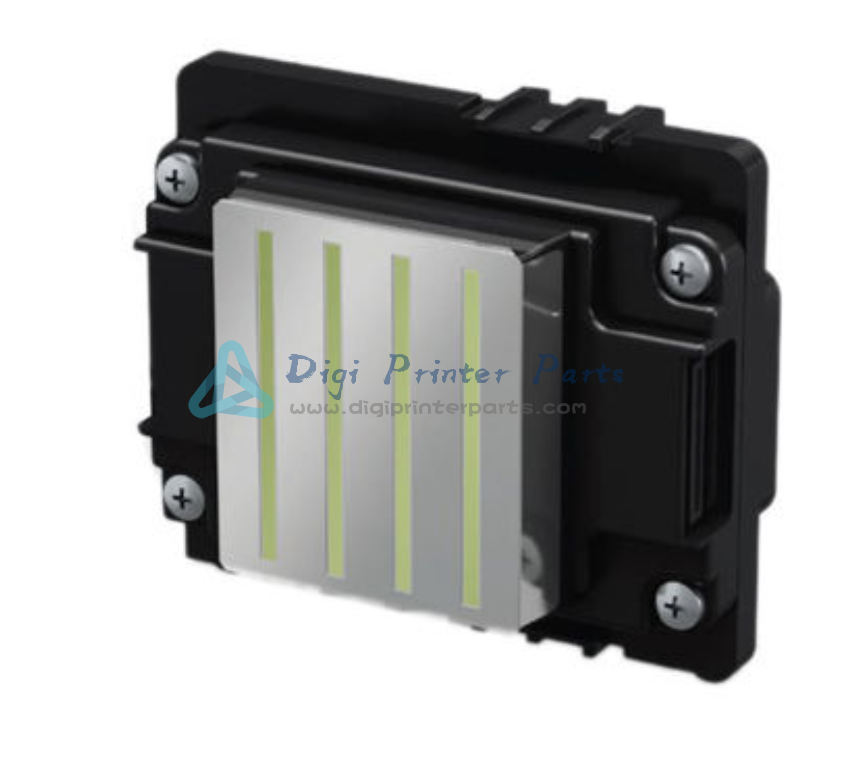

The Epson I3200-A1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with 600dpi high-density resolution. This printhead is suitable for water based inks. The head included the manifold.
Structurally, the Epson I3200-A1 and Epson I3200-A1 HD prinheads are the same heads, both with 8 rows of 400 nozzles.
But the two heads are absolutely NOT interchangeable, each printer can only run the type of head for which it was designed.
- The Epson I3200 has support for 4 colours, so there are 4 inputs (nipples) on the manifold to which the dampers can be connected, and each colour is emitted by a pair of nozzle rows.
- The Epson i3200 HD has support for 8 colours, so there are 8 inputs (nipples) on the manifold to which the dampers can be connected, and each colour is emitted by a single nozzle row.
Warranty: due to the nature of DTF inks, we cannot accept returns, exchanges or refunds once the printhead has been installed. All sales are final.
We recommend to change the head cables when installing a new printhead.
Specifications :
- Ink Type : Aqueous
- Type : PrecisionCore MicroTFP printhead
- Width x Depth x Height: 69.1 x 59.4 x 35.6 mm
- Weight : 82g
- Number of nozzle : 3200
- Nozzle pitch/nozzle row : 1/300 inch
- Nozzle rows: 8 rows
- Nozzle Resolution : 300 noi/row 600 npi/2 rows
- Max. number of colour inks : 4 colours
- Effective print width : 33.8 mm (1.33 inches)
-
Droplet ejection performance :
Binary : 6 plat 43.2 kHz
3 levels grey scale : 6.3, 12.3 pl at 21.6 kHz
4 levels grey scale 3.8, 6.1, 9.4 pl at 21.6 kHz - Viscosity range : 3-4 mPa·s
- Country of origin : Japan
